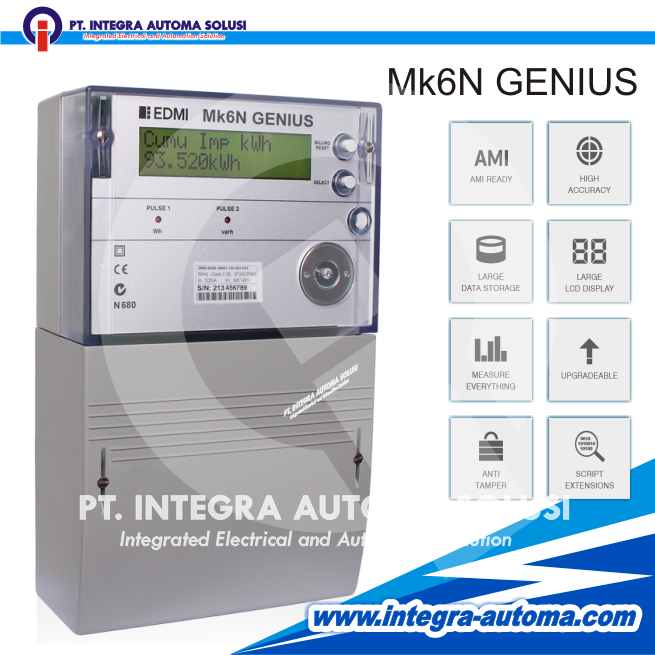

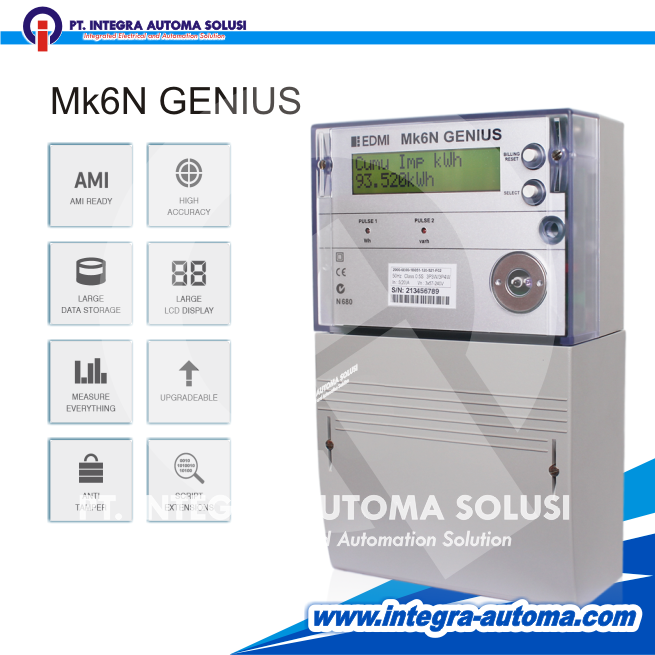

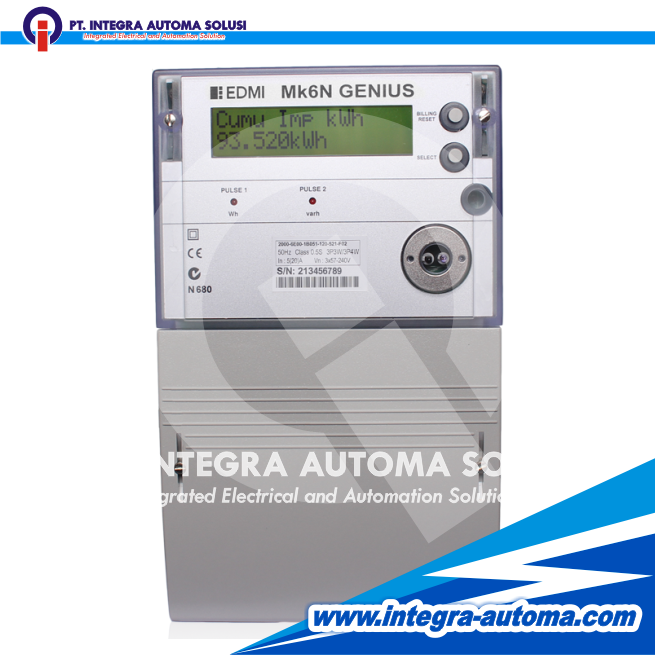

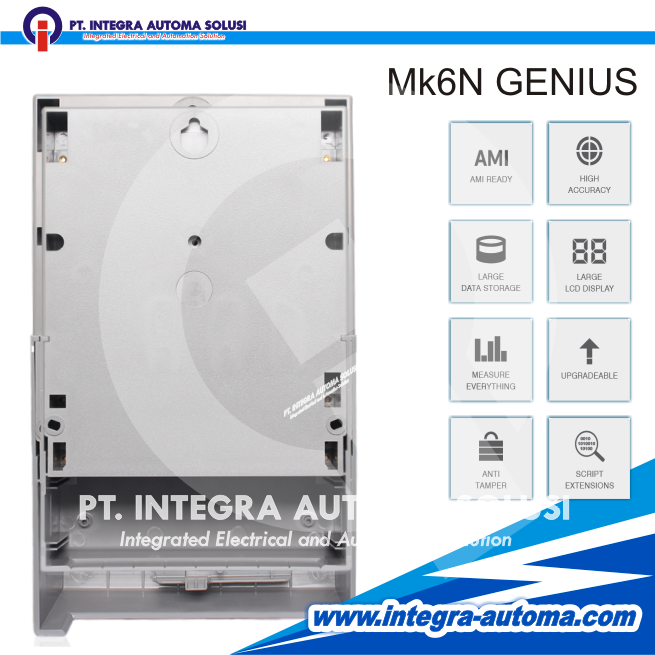

METER EDMI Mk6N
KWH METER EDMI MK6N: - Class 0.5S - Dipakai untuk pengukuran tak langsung di tegangan menengah - Sudah banyak dipakai di PLN - Kompatibel untuk sistem AMR ( Automatic Meter Reading) Dapat dibaca dari jarak jauh ( remote reading) menggunakan jaringan GSM ataupun GPRS - Mampu menyimpan data beban ( Load Profile) , data billing ( Billing History) dan rekaman kejadian yang terjadi pada KWH meter ( Event Log)
Utilizing the same advanced meter design
and firmware platform as the original Mk6, the new Mk6N meter updates
this platform to address new IEC standards and to incorporate an updated
power supply and input protection technology utilized by our latest
range of energy meters.
Communications Options
• ANSI Type 2 Optical Port (ANSI C12.18) or IEC 62056-21 (IEC 61107) Optical FLAG Port
• RS232 (RTS/CTS and DTR/DCD)
• RS485 (2 or 4 wire multidrop)
• SCADA
• Modems (PSTN/GPRS/GSM/C DMA)
• Internal Modem Power Supply
• MV-9OTM Compatible
• PPP / GPRS
• MODBUS
• Master / Slave arrangement with up to 31 ‘Slave’ meters accessed through one ‘Master’ gateway meter
Accuracy
• Class 0.5S , Class 1 and Class 2
• IEC62052-11, IEC62053-21 (Class 1), IEC62053-22 (Class 0.5S), IEC62053-23 (Class 2)
Measurement Modes
• Single Phase (3 Circuits)
• 3 Phase 3 Wire
• 3 Phase 4 Wire
Measured Energy Values
• 3 Elements, 4 Quadrants
• Import/Export Wh, varh and VAh
• Absolute Wh, varh and VAh
• Phase A, B, C or Total
Other Measured and Displayed Values
• W, var, VA
• True RMS Voltage (3 Phase)
• True RMS Current (3 Phase)
• Power Factor
• Frequency
• Phasor Angles
Load Survey / Load Profile
• NEM Compliant
• Standard 400 day-channel capacity at 30 minute intervals
• Optional additional storage to increase to over 2,500 day-channel capacity at 30 minute intervals
• Up to 50 Channels
• Per survey interval programmable from 1 second to 1 month
• Multiple independent surveys
• Energy, instantaneous readings and pulsing inputs as potential survey channel sources
• Ability to store average / minimum / maximum values over interval duration for individual channels
Time of Use
• 8 rates plus unified rate
• Up to 12 separate import and export registers
• Up to 200 programmable special days
• Daily, Weekly, Monthly, Yearly, Special
• 13 or more previous periods
• Block or Rolling Maximum Demand
• Time of Maximum Demand
• Configurable Billing Reset Button
